Getting Started with the Atmega328P


In the Internet of Things movement, people across the globe are connecting their stuff – TVs, pets, even houseplants - to the internet and transmitting all sorts of data.

If you’re going to be a part of that movement, or want to dabble in creative prototyping on a budget, it’s important to get to know our little friend:

The ATMega.


 Photo by Will Carlson.

The real benefit of using this microcontroller is that it’s only $4 US, whereas many other micro-controllers are 10X that price. It can also be easily programmed in the universal programming language, C++. The ATMega is also equipped with a decent amount of memory for any project.

Applications for the ATMega continue to grow across the global tech sphere. Today, it’s mostly used in simple machines to receive, interpret, and output information. You may have seen the ATMega used in small machines like RC cars and robots. It can make them autonomous and allow these devices to get from point A to point B on their own.Thus, for its size and its cost, this is a powerful little device. Jaycon Systems is here to equip you with the know-how to put it to use!

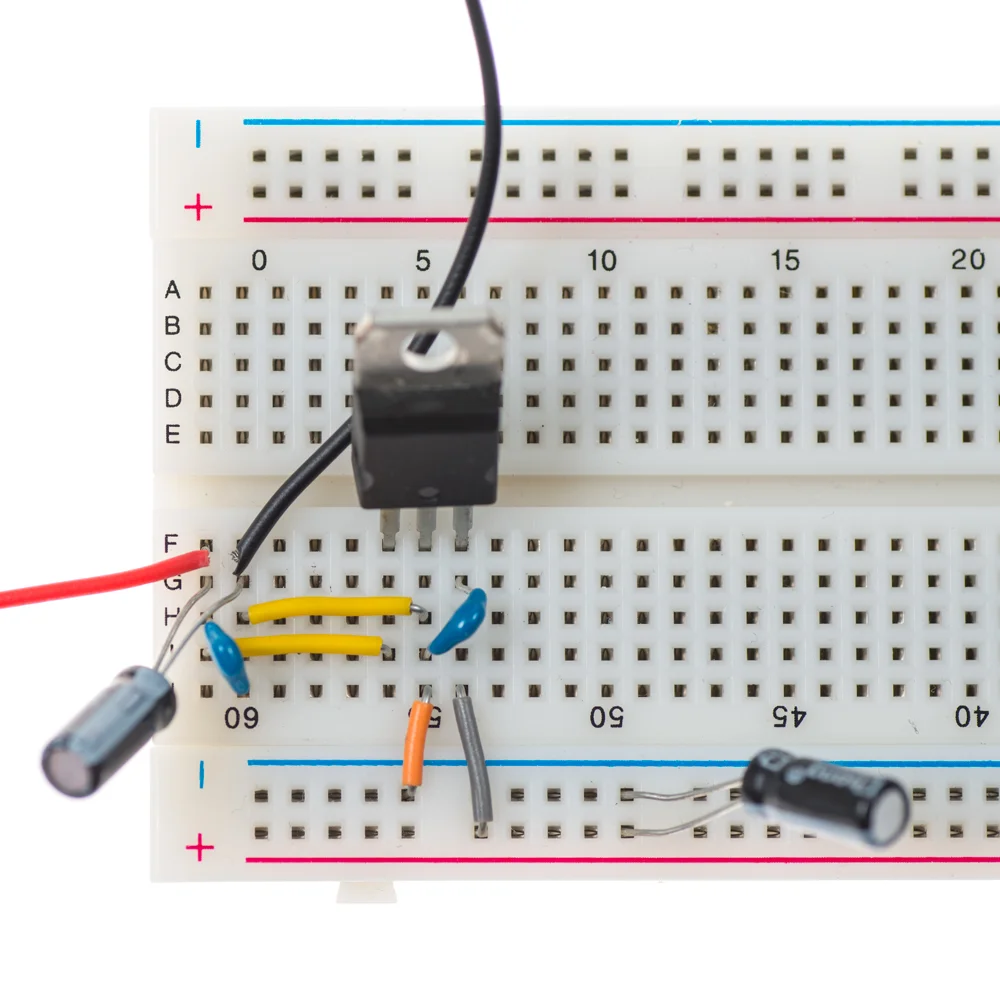

For our demo, we’ll use the basic 5V power supply created by founder and friend, Jay. Below you can see picture of the circuit:


All of the hardware required for this project can be found at our online store. Stay tuned, you’ll soon be able to by this as a kit. We’ve got you covered.


2x 0.1 µF 50V Ceramic Capacitor

1x 0.1 µF Ceramic Capacitor

1x 16MHz Quartz Crystal Clock

1x AVR ICSP Programming Adaptor

1x ATMega328P

1x LED 5mm (any color)

2x 330Ohm Resistors

1x USBTiny AVR Programmer


WinAVR [specifically, Programmer’s Notepad]

The ATMega328P is a microcontroller with 23 IO pins, two 8-bit internal clocks, and 32kB of flash memory.

To begin,notice the notch that indicates the direction of the chip — and the dot that indicates Pin 1. All pins that follow suit are in regular numerical order. If you are having trouble with the layout, you can view the product document (details on page 2).


Add a wire from Power to Pin 7 (Power) and a wire from Pin 8 to Ground. Then, add the 0.1µF Ceramic Capacitor to Pin 7 and Ground.


Add a LED to the first available row next to Pin 1 that is not already being used by the ATMega. Add a 330 Ohm Resistorfrom Pin 1 to Power. Pin 1 is the reset pin. Then, add another 330 Ohm Resistor from Pin 4 to the row that the LED is connected to.You have now powered the LED.

Note: The power applied from the Resistor to Pin 1 controls what “LOW” should be so the ATMega doesn’t constantly reset itself. The LED also needs the resistor so the ATMega doesn’t kill the LED.


The ATMega’s clock is slow and unreliable because it’s not constant. Let’s add a crystal clock that will speed it up and make the ATMega more reliable. Add the Quartz crystal clock to Pins 9 and 10. Then, add a 0.1 µF 50V Ceramic Capacitor from Pin 9 to Ground, and another one from Pin 10 to Ground.

(NOTE: It’s important to not power the ATMega with the clock already installed unless it has been flashed first.)


You now have a working circuit, and need the programmer. Solder the programming adapter together and place it on the board. Make sure that you place parts in the correct direction, and be careful handling hot tools.


The next step is to wire the programming adapter. You can take any path to wire it in, as long as you use the correct pins. Optional: If you are going to power your ATMega with the programming adapter, wire from the “GND” and “+5V” pins on the adapter, across to the power rails.

Here is the Pin map for wiring the rest of the adapter: 17 to MOSI; RST to 1; 19 to SCK; and 18 to MISO.

The USBTiny has a small switch on it labeled “NO POWER” and “POWER TARGET”. To power the ATMega from the USBTiny, set it to “POWER TARGET”. Not interested? Simply set it to “NO POWER” to avoid unintentional destruction.


Now that we have the board completely built, let’s program it so we can make the LED blink. Once it blinks, you know that you have properly built the board.

Ready for the next steps? First, we need to make the ATMega use the clock that was just installed.

Download and install WinAVR from this page.

WinAVR is a full suite with a compiler, programmer, debugger, and more! Use these for the USBTiny. It will include Programmer’s Notepad, which is what we are going to use to program the ATMega, the AVRDude, and will burn fuses and act as a backup for programing the ATMega.

Find “Run” on your computer, type in “cmd” and click “OK”.

Type “avrdude -c usbtiny -p m328p -B 25 -U lfuse:w:0xFF:m -U hfuse:w:0xDE:m -U efuse:w:0x05:m”

-C identifies the programmer “usbtiny”

-P identifies the chip being programed “m328p” (short for ATMega328p)

-B sets the clock rate. We are setting it to 25 because the current clock is much slower than the clock on the programmer.

-U Is a memory operation, lfuse selects the low fuse, w tells the program to write it, and the hex code (0x##) is the fuse value. This is repeated for the high fuse and extended fuse.

Understanding Hex codes:

Hex codes may look intimidating, but they are really just counting, using an extended list from 0–15, starting with 0–9, and then continuing with a-f (filling the 10–15 places). The 0x in front of each code is how the software knows that it is reading a new value, because it never uses “0x”.


What happens if you want to count a number bigger than 15? Hex, like normal math, just counts up, rounding back to 1 followed by a 0; so 10 means 16, 11 means 17, and so on, like normal counting, but with more digits.


So 0xd3 just says 211, and if you want to say 75, just write 0x4b.

This sets the necessary fuses the chip needs for the clock without killing itself. Once it is done, we are going to use Programmer’s Notepad to allow you to do a lot more with the chip than what you can do using Arduino.

Once the fuses have been burned, download and install WinAVR from this page. WinAVR is a full suite with a compiler, programmer, debugger, and more! We will use these for the USBTiny. It will include Programmer’s Notepad, which is what we are going to use to program the ATMega.

Now we are going to create a .c file, which will contain the code that will blink the LED, and a makefile to specify what microcontroller we are using among other things. Open Programmers Notepad and type in the following code:

#include <avr/io.h> // This contains the definitions of the terms used
#include <util/delay.h> // This contains the definition of delay function
void main()
DDRD = 0b00000100; // Port D2 (Pin 4 in the ATmega) made output
PORTD = 0b00000000; // Turn LED off
PORTD = 0b00000100; //Turn LED on
_delay_ms(200); // delay of 200 millisecond
PORTD = 0b00000000; //Turn LED off
_delay_ms(200); // delay of 200 millisecond

Now save the file as led.c (you can choose other name if you want as long as it has the .c extension). It is recommended to create a new folder to save all your WinAVR projects. For example, we created a folder in the desktop called AVR. The led.c file is then saved inside a folder called LED_blink within the AVR folder.

The next step is to create the makefile. Open Mfile and follow these steps:

1. Click MakeFile -> Enable Editing of Makefile. This will allow you to modify the text within the Makefile.

2. Click MakeFile -> Main file name. This will open a small window in which you need to type the name of the file you created using Programmers Notepad without the .c extension. In this example we simply typed led and then clicked OK.

3. Since we are using a 16MHZ Quartz Crystal Clock we need to specify the processor frequency. This is done by changing F_CPU = 8000000 to F_CPU = 16000000 (we are only changing the last F_CPU that does not have a “#.” Leave the other ones as they are).

4. Click MakeFile -> MCU type  -> ATMega ->  atmega328p. This specifies the microcontroller that we are using.

5. Click MakeFile -> Port  -> USB.

6. Scroll to the section” Programming Options (avrdude)” and change AVRDUDE_PROGRAMMER to USBtiny.

7. Save the file in the same folder where you saved the led.c file (Desktop\AVR\LED_Blink). Make sure you don’t change the name of the file (Makefile). Leave it as it is.

Now we can upload the code to make our LED blink. Open the led.c file and do the following:

1.Click Tools -> Make All

2.Click Tools ->  Make Clean

3.Click Tools ->  Program

You can now disconnect the AVR ICSP Programming Adapter and use the 5V power supply. Your LED should be blinking now.

The command “make all” compiles and checks all the software from the two tabs, while “program” programs the ATMega with the newly compiled software. “Make clean” removes all previously created temporary files. It gets you ready for an entire new compile. This is nice because it allows you to compile the software once, and then program multiple chips, one after the other, without going through the whole process again! Trust me, you will be thankful once you start making bigger programs.

Explaining the Code

#include<<avr/io.h> declares the appropriate Input/Output definitions. For instance, including this header file allows us to use “DDRD” to set port D as an output.

#include <util/delay.h> declares the basic busy-wait functions. This allows us to use the function _delay_ms() to create a delay in millisecond. The argument of the function states the number of milliseconds that we want to wait.

You may notice a semicolon (;) after every line of code. The semicolon tells the program that this is the end of the command. The reason you need this is because when the program reads it, it doesn’t see multiple lines from when you hit “Enter” or “Space”. Instead, it sees it all as one continuous, massive line of code, so it needs the semicolon to know when to start interpreting a different command.

“while(1)” is a simple way of making a continuous loop. The “while” command repeats everything inside the “{ }” immediately after it as long as the statement in the “( )” is true. Because it has been set to “1”, with no real variables or math, the statement will always be true.

The phrase “PORTD = 0b000000100;” translates into “Turn on Port D, number 2”, which corresponds to pin 4 of out microcontroller as seen in the picture below:

Arduino ATmega328p Pinout


Each bit number represents a pin in a port. As you can see Port D has 8 pins: D0 -D7. So saying “PORTD = 0b00000100” is really this “PORTD = 0bD7D6D5D4D3D2D1D0.” Placing a one in one of the port’s pins drives the pin high, while placing a zero drives the pin low.

You may need something smaller, or need something to handle more data; otherwise, the Mega can do anything that your average project would require. It’s rare that anything will overpower the ATMega. For micro projects or wearable electronics, turn to the AT Tiny.

If you have any questions about this tutorial, don't hesitate to post a comment, shoot us an email, or post it in our forum!
