Setting Up Arduino Software on Your Computer


computer plus arduino software - tutorial.jpg

In this tutorial, you will learn how to set up the Arduino IDE to work with your Arduino board (works will most Arduino boards).

Step 1:

Install the Arduino IDE software (http://arduino.cc/en/Main/Software).

Step 2:

Take your Arduino out of the box.


Step 3:

Plug the USB cable into your computer.

Locate the COM port by going to computer> device manager.

1335564071_Jaycon Systems - Arduino UNO - Tutorial Image.jpg

Choose Ports (COM & LPT).

1335564284_Jaycon Systems - Arduino UNO - Tutorial Image2.jpg

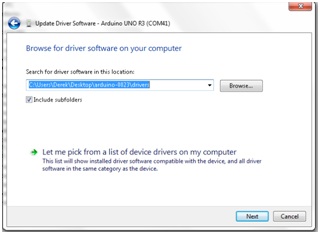

Right click on the COM port> Update Driver software > then "Browse my computer for driver software".

1335564327_Jaycon Systems - Arduino UNO - Tutorial Image3.jpg

At this point, you need to find the file location for the Arduino IDE software, then select the driver folder and click OK, then Next. You computer should locate the file, then click Close. The COM port should then identify itself as Arduino.

Step 4:

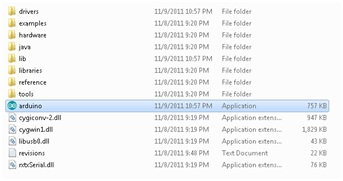

Open the Arduino IDE software.

1335564396_Jaycon Systems - Arduino UNO - Tutorial Image4.jpg

Step 5:

Configure the Arduino IDE software. We are going to configure the software to work with our selected development board. For this tutorial, we are using the Arduino Uno R3.

Step 6:

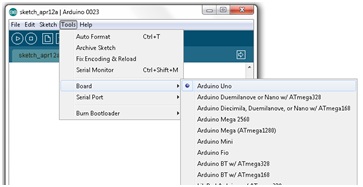

Click Tools> Board > Arduino Uno.

1335564428_Jaycon Systems - Arduino UNO - Tutorial Image5.jpg

Step 7:

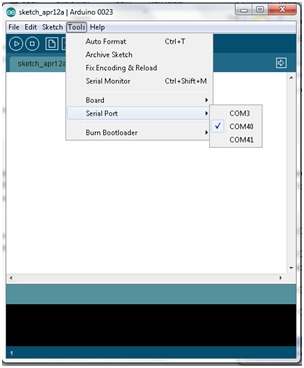

Configure the software to work with the specific COM port. Click Tools> Serial Port>

1335564463_Jaycon Systems - Arduino UNO - Tutorial Image6.jpg

Note: You will use the com number you found in step 3.

Step 8:

...Now you are ready to upload a sketch. Here is a tutorial to upload a sketch
